MAST PUMPEN TP Firefighting Submersible Pump TP15-1 DIN 14425

It delivers a water flow rate of up to 2,400 l/min with a maximum pumping height of 21 m. It is capable of pumping particles with a diameter of up to 15 mm. The pump weighs 45 kg.

SEND INQUIRY

DETAILS

Motor: 3~ 400 V, AC
Power P1 / P2: 5.3 / 4.5 kW
Rated current: 9.3 A
Total weight: 45 kg, incl. cable
Dimensions: Ø 260 × H 570 × L 440 mm
Connection size: G 4″
STORZ coupling: A
Particle size: Ø 15 mm
Submersion depth: ≤ 20 m
Liquid temperature: ≤ 60 °C
Liquid density: ≤ 1.1 kg/dm³
pH value of liquids: 5–8

‍

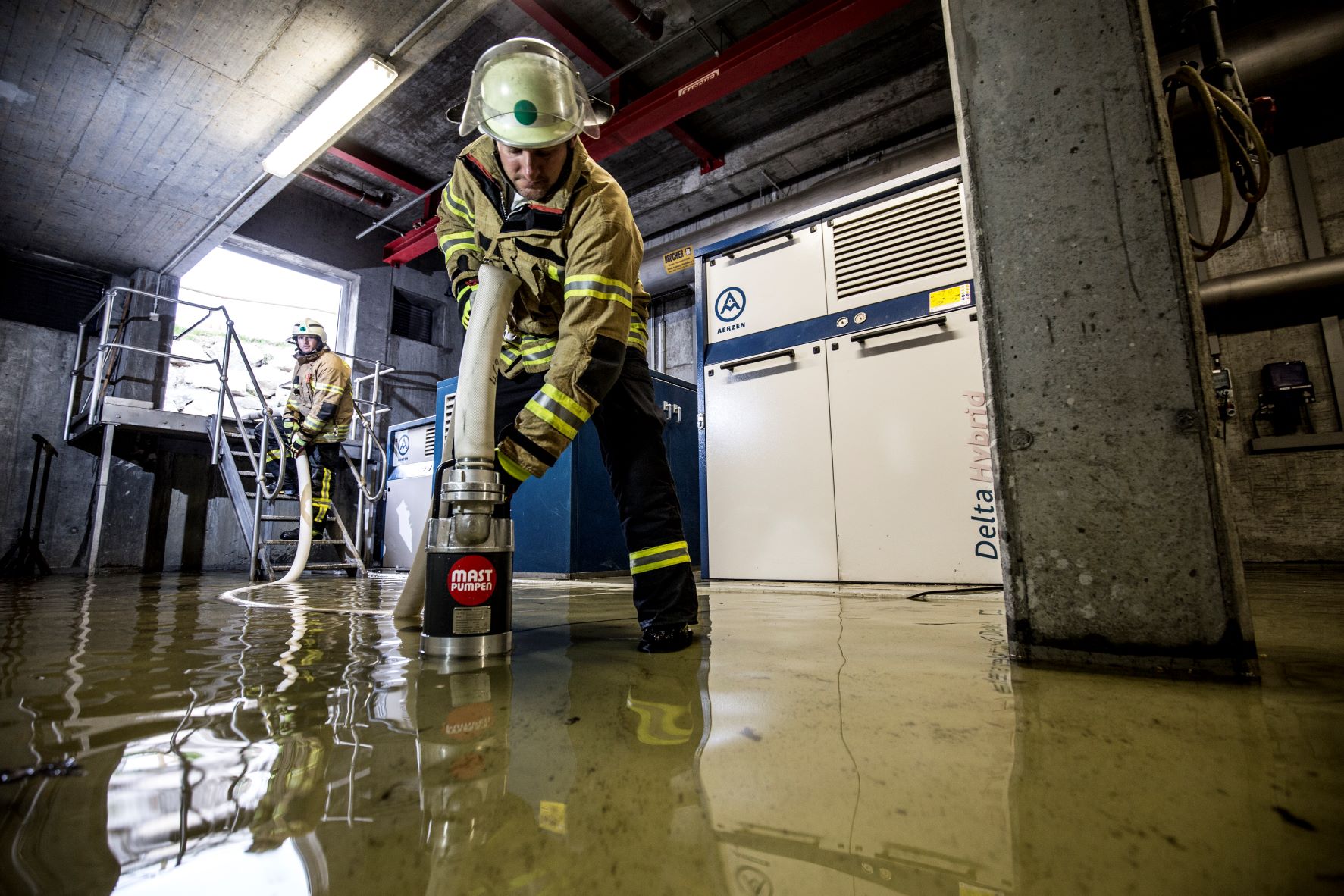

The MAST PUMPEN TP 15-1 submersible pump is manufactured according to the German standard DIN 14 425 and is available with a PRCD-K personal protection switch. It ensures safe and efficient water pumping in the event of flooding. The pump is powered by a single-phase electric motor with an output of 4.5 kW, operates oil-free, and is ready for use at any time. It is maintenance-free and requires no regular servicing.
